High Resolution
This camera use a high performance megapixel CMOS,which provides high resolution, clear, noiseless and reliable image; Effective pixels can reach 1.3/2 megapixel.
18X/22X/30X/36X Optional
OSD Menu/Line control/RS-485 Control
Remote control operations are possible through RS-485 signal interface, also can control the lens by external control line.
Day/Night
Camera will auto switch to color at daytime and B/W at night according to the environment illumination to ensure a high sensitivity and clear image.
Auto Focus
Camera can auto focus from 0.1m to limitless distance.
Built-in IR Color Filter
Built-in IR color filter which can fully enhance the day & night.

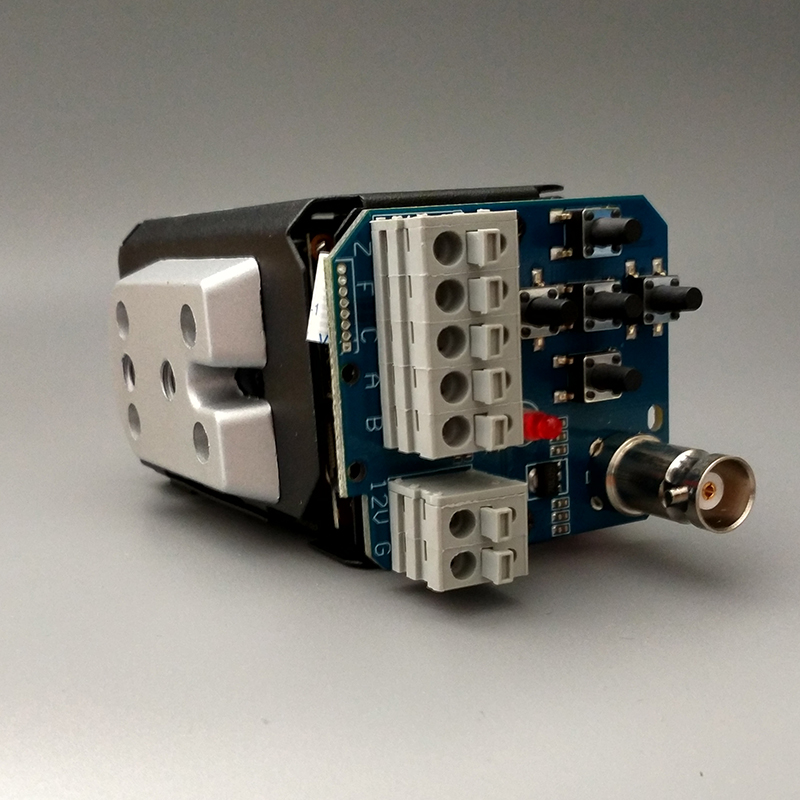

Zoom Camera Module Specification:
|
Model No .
|
SZ-AR8318-P2
|
Image sensor
|
1/2.5" 2.0Megapixel CMOS NVP2441H+SONY322
|
Signal model
|
PAL/NTSC
|
Effective pixel
|
1920 (H) *1080 (V)
|
Min. illumination
|
Color: 0.01Lux@(F1.2, AGC ON), 0Lux with IR
|
Black & White: 0.001Lux@(F1.2, AGC ON),0Lux with IR
|
Optical focus
|
30x Zoom, f=3.9 - 117mm, F1.6 - F3.5
|
lens
|
27x(20X,30X) zoom lens (3.9-105.3mm), view angle: 2.5°-49.6°, 50dB
|
Zooms / Focus
|
Zoom(TELE / WIDE), Focus
|
(Near / PAR, Auto / Manual / One Push)
|
Scanning system
|
16:10 progressive
|
Pixel clock
|
74.25MHZ
|
Scanning frequency(V)
|
NTSC / PAL (30 / 25 Hz)
|
Sync. system
|
Internal / External (Line lock)
|
Video output
|
HD LVDS:Digital ITU-RBT.1120 (YcbCr4:2:2 16 bits)
|
HDSDI (optional): SMPTE292M (1.485Gbps) 1920*1080p @25,30
|
Analog: SD CVBS (NTSC / PAL) 1.0Vp - p 75, composite
|
Angle of view
|
57.4 degrees (wide) 3 .2 degrees (TELE)
|
Exposure control
|
Auto
|
Electronic shutter speed
|
1/30 - 1/30000, 1/25 - 1/30000, DSS(off,x2,x3,x4
|
Functions
|
Privacy mask, image mirror, DNR, BLC, HLC, DSS, Flickerless, Sharpless, Temperature display
|
Day/Night(ICR)
|
Support
|
AWB
|
Support
|
AGC
|
Support
|
Back light compensation
|
Auto / Manual BLC, HLC (High Light compensation)
|
3D-DNR
|
Suppor
|
Control
|
UART (RS232C - 3.3V level) or 12C (optional)
|
Protocol
|
PELCO-D / SONY - VISCA
|
Dimensions
|
50(W)*58(H)*90(D)mm
|
Power voltage input
|
12VDC+/_3v
|
Power consumption
|
TBD
|
